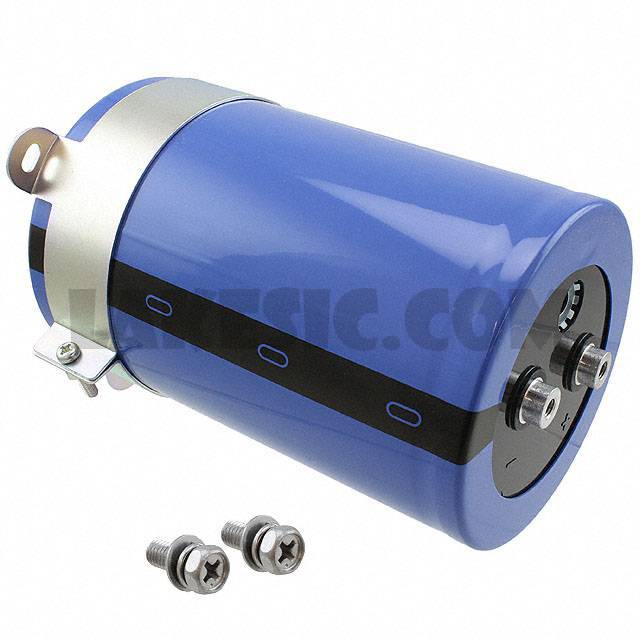

LNR2D223MSE

LNR2D223MSE

Part NumberLNR2D223MSE

ManufacturerNichicon

DescriptionCAP ALUM 22000UF 20% 200V SCREW

DatasheetLNR Series

Package / CaseRadial, Can - Screw Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C

To learn about the specification of LNR2D223MSE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LNR2D223MSE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LNR2D223MSE.
We are offering LNR2D223MSE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LNR2D223MSE - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LNR Series
Standard Package	5
Manufacturer	Nichicon
Series	LNR
Packaging	Bulk
Part Status	Active
Capacitance	22000µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	15.9A @ 120Hz
Ripple Current @ High Frequency	19.08A @ 10kHz
Lead Spacing	1.252" (31.80mm)
Size / Dimension	3.543" Dia (90.00mm)
Height - Seated (Max)	5.630" (143.00mm)
Surface Mount Land Size	-
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
