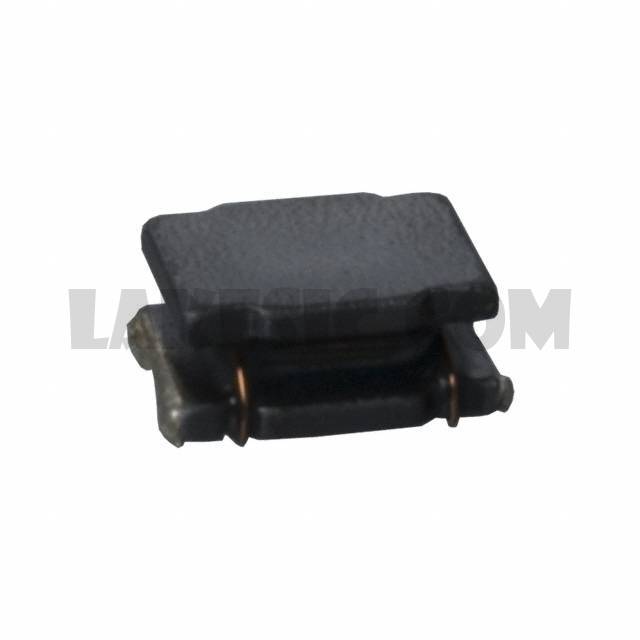

LQH2MCN4R7M02L
LQH2MCN4R7M02L
Part Number LQH2MCN4R7M02L
Description FIXED IND 4.7UH 300MA 800 MOHM
Package / Case 0806 (2016 Metric)
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 4.7µH Unshielded Wirewound Inductor 300mA 1.04Ohm Max 0806 (2016 Metric)
To learn about the specification of LQH2MCN4R7M02L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH2MCN4R7M02L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH2MCN4R7M02L.
We are offering LQH2MCN4R7M02L for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
LQH2MCN4R7M02L - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet LQH2MCNyyyy02L Spec
Standard Package 1
Manufacturer Murata Electronics North America
Series LQH2
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7µH
Tolerance ±20%
Current Rating (Amps) 300mA
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 1.04Ohm Max
Q @ Freq -
Frequency - Self Resonant 60MHz
Ratings -
Operating Temperature -40°C ~ 85°C
Inductance Frequency - Test 1MHz
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
