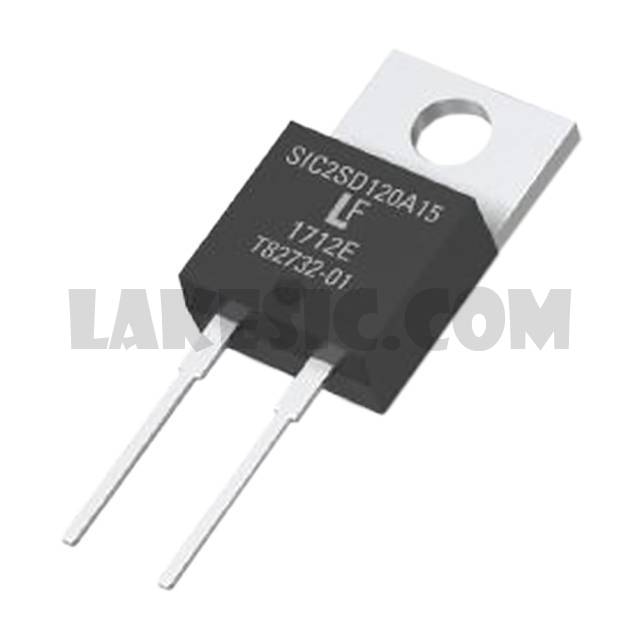

LSIC2SD120A15

LSIC2SD120A15

Part NumberLSIC2SD120A15

ManufacturerLittelfuse Inc.

DescriptionDIODE SIC SCHOTTKY 1200V 15A

DatasheetLSIC2SD120A15 Datasheet

Package / CaseTO-220-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 1200V 44A (DC) Through Hole TO-220-2

To learn about the specification of LSIC2SD120A15, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LSIC2SD120A15 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LSIC2SD120A15.
We are offering LSIC2SD120A15 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LSIC2SD120A15 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	LSIC2SD120A15 Datasheet
Standard Package	1000
Manufacturer	Littelfuse Inc.
Series	Gen2
Packaging	Tube
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	44A (DC)
Voltage - Forward (Vf) (Max) @ If	1.8V @ 15A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	100µA @ 1200V
Capacitance @ Vr, F	920pF @ 1V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220-2
Operating Temperature - Junction	-55°C ~ 175°C
