Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MB1S - MB8S
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 500mA
Current - Reverse Leakage @ Vr	5µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	4-SOIC
Base Part Number	MB6

MB6S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount MBS-1,	View
YBS2205G RAG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount YBS,	View
CDBHD1100L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount Mini-Dip (TO-269AA),	View
CD-HD01	Bourns Inc., Bridge Rectifier Single Phase Schottky 100V Surface Mount,	View
ABF10UTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABF,	View
DF08S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 800V Surface Mount DF-S,	View
DF04S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 400V Surface Mount DFS,	View
ABS8 REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Surface Mount ABS,	View
UABF1510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View
ABS10TR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS,	View
CBR1-D100S TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SMDIP,	View
ABS8 REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Surface Mount ABS,	View

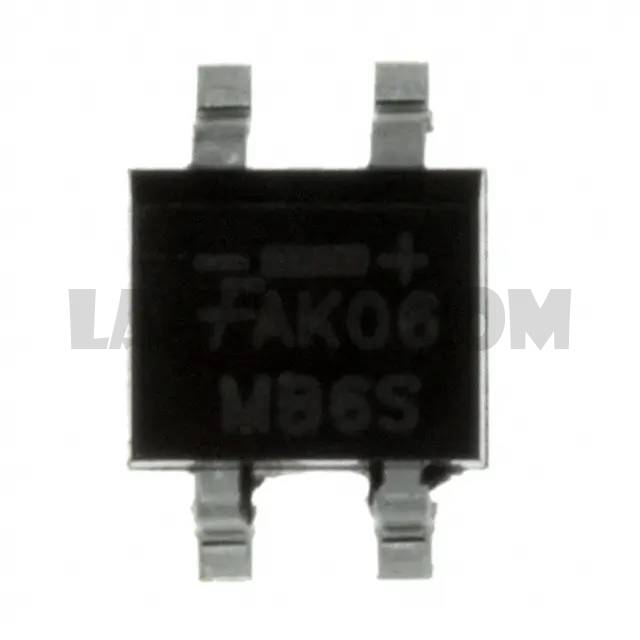

MB6S
