MCCD2005-TP

Part NumberMCCD2005-TP

ManufacturerMicro Commercial Co

DescriptionMOSFET 2N-CH 20V 8A

DatasheetMCCD2005

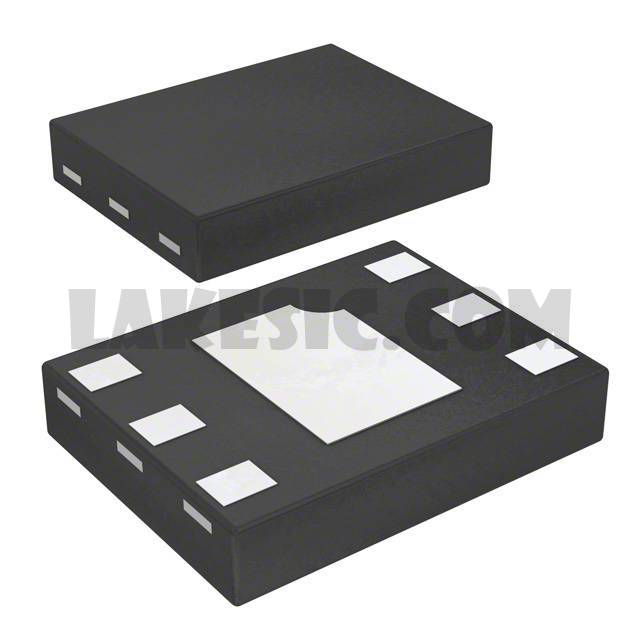

Package / Case6-WFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 20V 8A Surface Mount DFN2030-6

To learn about the specification of MCCD2005-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCCD2005-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCCD2005-TP.
We are offering MCCD2005-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCCD2005-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	MCCD2005
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	8A
Rds On (Max) @ Id, Vgs	13mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1800pF @ 10V
Power - Max	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	DFN2030-6
