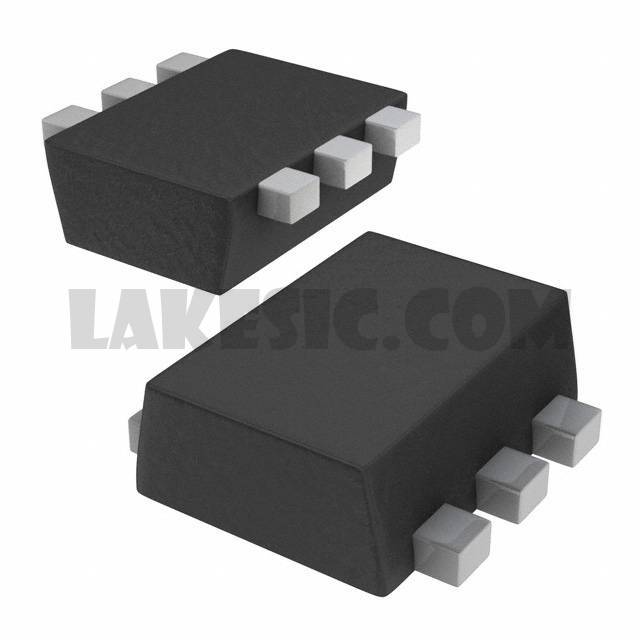

MCH6203-TL-E

Part NumberMCH6203-TL-E

ManufacturerON Semiconductor

DescriptionTRANS NPN/PNP 50V 1A 6MCPH

DatasheetMCH6103,6203

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP 50V 1A 420MHz 1W Surface Mount 6-MCPH

To learn about the specification of MCH6203-TL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCH6203-TL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCH6203-TL-E.
We are offering MCH6203-TL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCH6203-TL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	MCH6103,6203
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN, PNP
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	430mV @ 10mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V
Power - Max	1W
Frequency - Transition	420MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	6-MCPH
