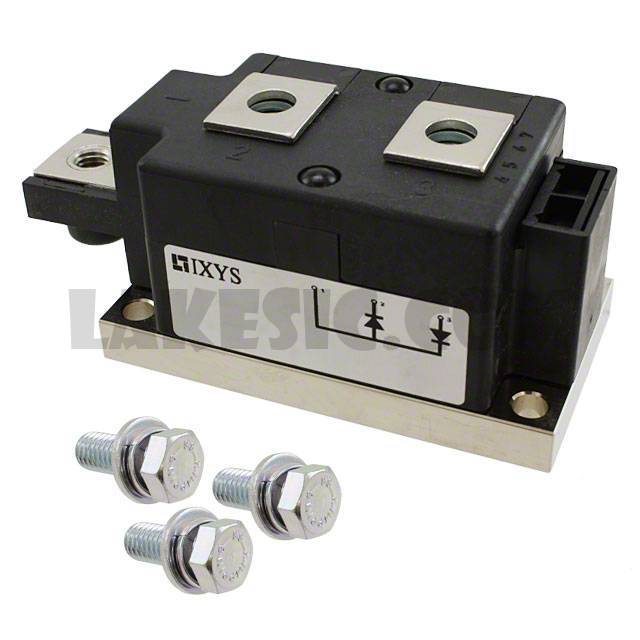

MDD255-12N1

Part NumberMDD255-12N1

ManufacturerIXYS

DescriptionDIODE MODULE 1.2KV 270A Y1-CU

DatasheetMDD255

Package / CaseY1-CU

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Standard 1200V 270A Chassis Mount Y1-CU

To learn about the specification of MDD255-12N1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MDD255-12N1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MDD255-12N1.
We are offering MDD255-12N1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MDD255-12N1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	MDD255
Standard Package	3
Manufacturer	IXYS
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io) (per Diode)	270A
Voltage - Forward (Vf) (Max) @ If	1.4V @ 600A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	30mA @ 1200V
Mounting Type	Chassis Mount
Package / Case	Y1-CU
Supplier Device Package	Y1-CU
Base Part Number	MDD255
