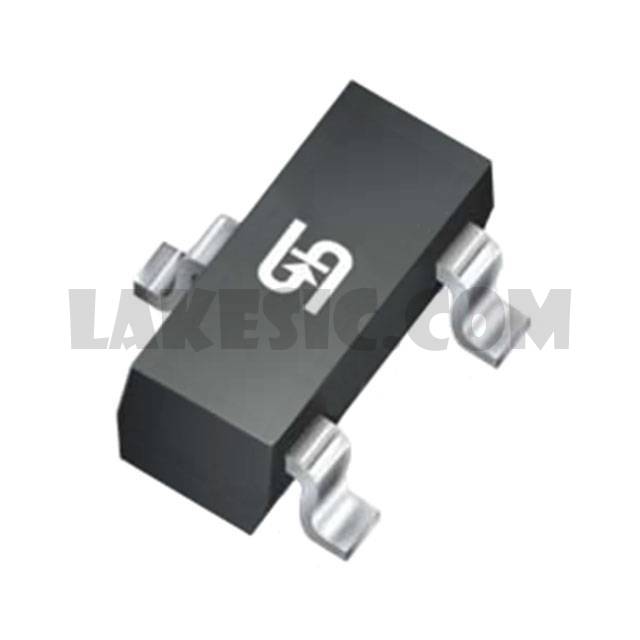

MMBT3904 RFG

MMBT3904 RFG

Part NumberMMBT3904 RFG

ManufacturerTaiwan Semiconductor Corporation

DescriptionTRANSISTOR, NPN, 40V, 0.2A, 100A

DatasheetMMBT3904

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 40V 200mA 250MHz 300mW Surface Mount SOT-23

To learn about the specification of MMBT3904 RFG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMBT3904 RFG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMBT3904 RFG.
We are offering MMBT3904 RFG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMBT3904 RFG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MMBT3904
Standard Package	3000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	200mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	50nA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Power - Max	300mW
Frequency - Transition	250MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
