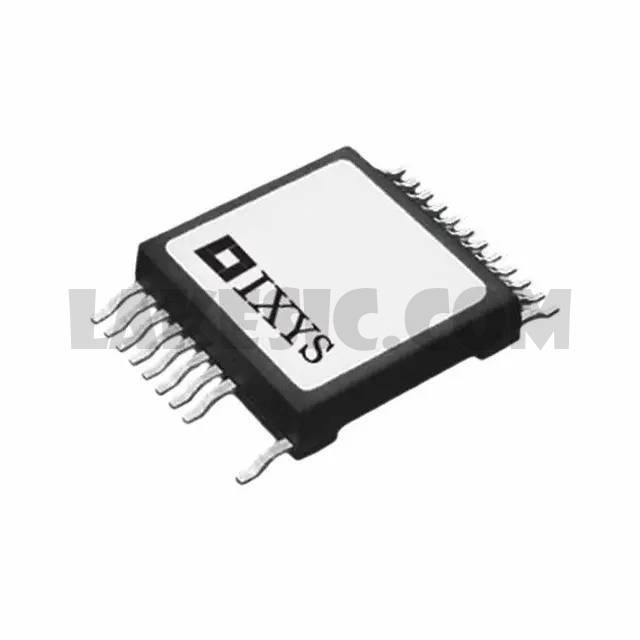

MMIX1F520N075T2

MMIX1F520N075T2

Part NumberMMIX1F520N075T2

ManufacturerIXYS

DescriptionMOSFET N-CH 75V 500A

DatasheetMMIX1F520N075T2

Package / Case24-PowerSMD, 21 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 75V 500A (Tc) 830W (Tc) Surface Mount 24-SMPD

To learn about the specification of MMIX1F520N075T2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMIX1F520N075T2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMIX1F520N075T2.
We are offering MMIX1F520N075T2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMIX1F520N075T2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MMIX1F520N075T2
Standard Package	20
Manufacturer	IXYS
Series	GigaMOS™, TrenchT2™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75V
Current - Continuous Drain (Id) @ 25°C	500A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	545nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	41000pF @ 25V
FET Feature	-
Power Dissipation (Max)	830W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-SMPD
Package / Case	24-PowerSMD, 21 Leads
