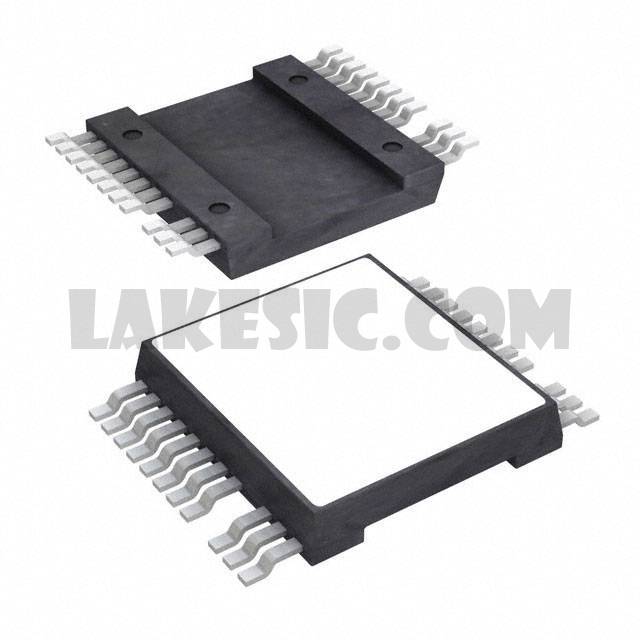

MMIX1T132N50P3

MMIX1T132N50P3

Part NumberMMIX1T132N50P3

ManufacturerIXYS

DescriptionSMPD HIPERFETS & MOSFETS

DatasheetMMIX1T132N50P3

Package / Case24-PowerSMD, 22 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 63A (Tc) 520W (Tc) Surface Mount Polar3™

To learn about the specification of MMIX1T132N50P3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMIX1T132N50P3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMIX1T132N50P3.
We are offering MMIX1T132N50P3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMIX1T132N50P3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MMIX1T132N50P3
Standard Package	20
Manufacturer	IXYS
Series	Polar™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	63A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	43mOhm @ 66A, 10V
Vgs(th) (Max) @ Id	5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	267nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	18600pF @ 25V
FET Feature	-
Power Dissipation (Max)	520W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Polar3™
Package / Case	24-PowerSMD, 22 Leads
