Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MP5005 - 5010
Standard Package	400
Manufacturer	Micro Commercial Co
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	50A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 25A
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	QC Terminal
Package / Case	4-Square, MP-50
Supplier Device Package	MP-50
Base Part Number	MP506

GBPC35005	ON Semiconductor, Bridge Rectifier Single Phase Standard 50V QC Terminal GBPC,	View
GBPC2506T	GeneSiC Semiconductor, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
GBPC2504T	GeneSiC Semiconductor, Bridge Rectifier Single Phase Standard 400V QC Terminal GBPC,	View
GBPC1201-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 100V QC Terminal GBPC,	View
GBPC1502-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View
VS-26MB05A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V QC Terminal D-34,	View
GBPC3501-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 100V QC Terminal GBPC,	View
GBPC5010-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV QC Terminal GBPC,	View
GBPC3506-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
GBPC3510	ON Semiconductor, Bridge Rectifier Single Phase Standard 1kV QC Terminal GBPC,	View
VS-36MB80A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 800V QC Terminal D-34,	View
GBPC1202-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View

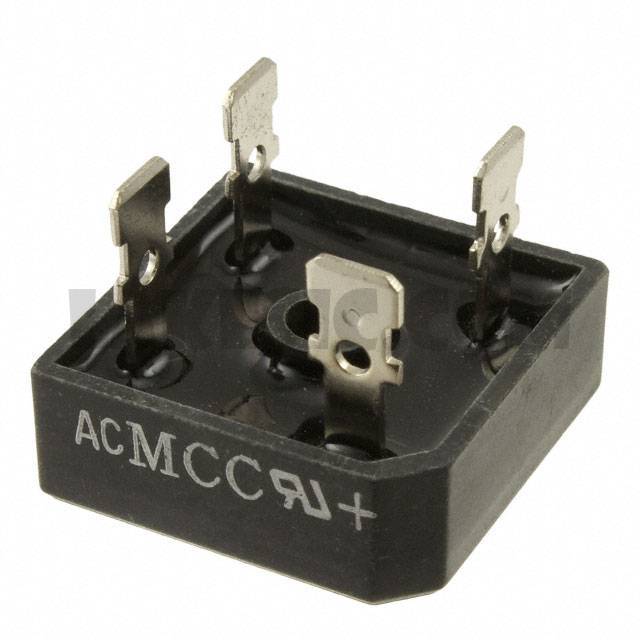

MP506-BP

Part NumberMP506-BP
