Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	VS-GBPC Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	35A
Current - Reverse Leakage @ Vr	2mA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal
Package / Case	4-Square, GBPC-A
Supplier Device Package	GBPC-A
Base Part Number	GBPC3506

GBPC35005-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V QC Terminal GBPC,	View
GBPC1201-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 100V QC Terminal GBPC,	View
GBPC1206-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
GBPC25005-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V QC Terminal GBPC,	View
GBPC1202-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V QC Terminal GBPC,	View
SC50VB160-G	Comchip Technology, Bridge Rectifier Three Phase Standard 1.6kV QC Terminal SCVB,	View
MT3516A-BP	Micro Commercial Co, Bridge Rectifier Three Phase Standard 1.6kV QC Terminal MT-35A,	View
VS-36MT120	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 1.2kV QC Terminal D-63,	View
VS-36MB20A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 200V QC Terminal D-34,	View
SC50VB80-G	Comchip Technology, Bridge Rectifier Three Phase Standard 800V QC Terminal SCVB,	View
VS-26MT20	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 200V QC Terminal D-63,	View
GBPC3510	ON Semiconductor, Bridge Rectifier Single Phase Standard 1kV QC Terminal GBPC,	View

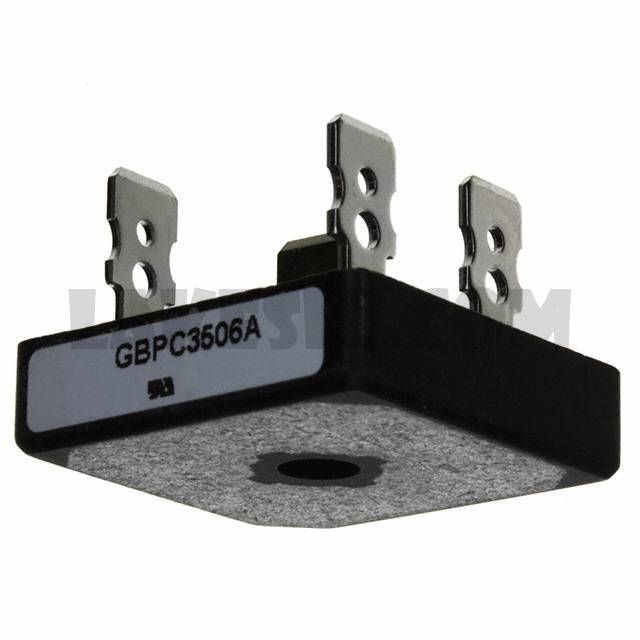

VS-GBPC3506A
