Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	MRF10120
Standard Package	20
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Tray
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	55V
Frequency - Transition	-
Noise Figure (dB Typ @ f)	-
Gain	8.5dB
Power - Max	120W
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 5A, 5V
Current - Collector (Ic) (Max)	15A
Operating Temperature	200°C (TJ)
Mounting Type	Chassis Mount
Package / Case	355C-02
Supplier Device Package	355C-02, Style 1

BFP843FH6327XTSA1	Infineon Technologies, RF Transistor NPN 2.25V 55mA 125mW Surface Mount TSFP-4-1,	View
MMBTH10M3T5G	ON Semiconductor, RF Transistor NPN 25V 650MHz 265mW Surface Mount SOT-723,	View
BFP183WH6327XTSA1	Infineon Technologies, RF Transistor NPN 12V 65mA 8.5GHz 450mW Surface Mount PG-SOT343-4,	View
NSVF3007SG3T1G	ON Semiconductor, RF Transistor NPN 12V 30mA 8GHz 350mW Surface Mount 3-MCPH, Automotive, AEC-Q101	View
MMBTH24-7-F	Diodes Incorporated, RF Transistor NPN 40V 50mA 400MHz 300mW Surface Mount SOT-23-3,	View
2SC5226A-5-TL-E	ON Semiconductor, RF Transistor NPN 10V 70mA 7GHz 150mW Surface Mount 3-MCP,	View
CMPT918 TR	Central Semiconductor Corp, RF Transistor NPN 15V 50mA 600MHz 350mW Surface Mount SOT-23,	View
MMBTH10-4LT1G	ON Semiconductor, RF Transistor NPN 25V 800MHz 225mW Surface Mount SOT-23-3 (TO-236),	View
BFP780H6327XTSA1	Infineon Technologies, RF Transistor NPN 6.1V 120mA 900MHz 600mW Surface Mount SOT343-4-2,	View
BFP840ESDH6327XTSA1	Infineon Technologies, RF Transistor NPN 2.25V 35mA 80GHz 75mW Surface Mount SOT-343,	View
2SC5085-Y(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 80mA 7GHz 100mW Surface Mount USM,	View
BFS483H6327XTSA1	Infineon Technologies, RF Transistor 2 NPN (Dual) 12V 65mA 8GHz 450mW Surface Mount PG-SOT363-6,	View

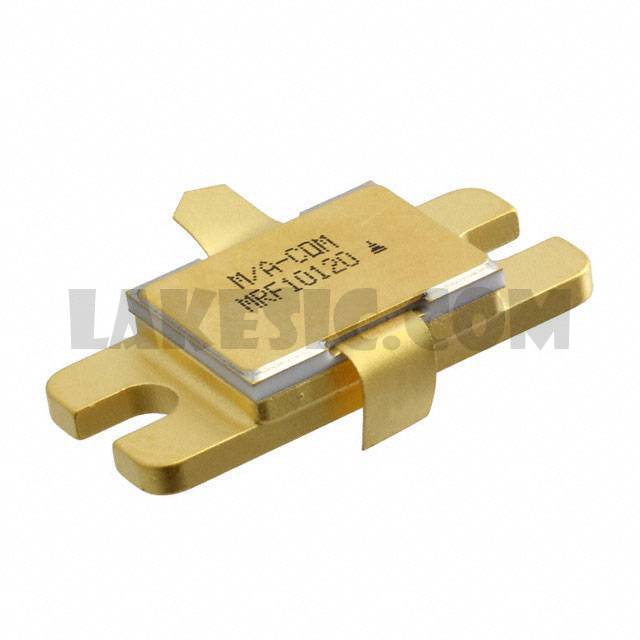

MRF10120
