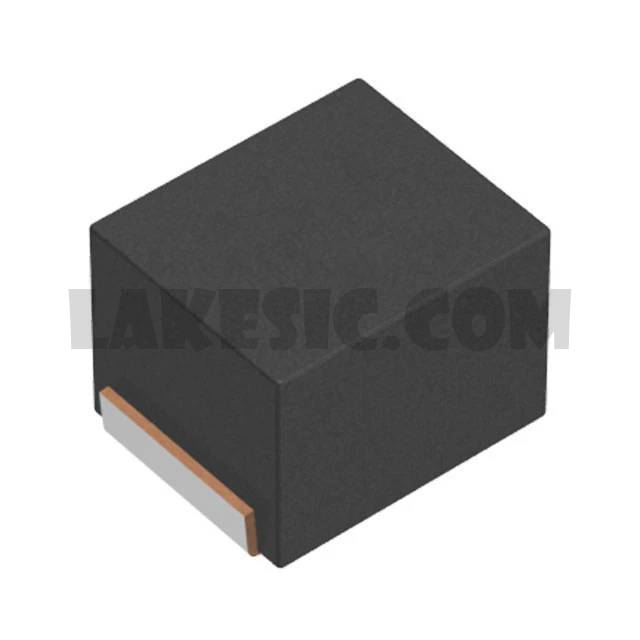

NLCV32T-100K-PFR

Part NumberNLCV32T-100K-PFR

To learn about the specification of NLCV32T-100K-PFR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLCV32T-100K-PFR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLCV32T-100K-PFR.
We are offering NLCV32T-100K-PFR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NLCV32-PFR Series, Commercial
Standard Package	2000
Manufacturer	TDK Corporation
Series	NLCV-PF
Packaging	Tape & Reel (TR)
Part Status	Not For New Designs
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±10%
Current Rating (Amps)	600mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	504mOhm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	30MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	2.52MHz
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
