Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	NMLU1210
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Schottky
Voltage - Peak Reverse (Max)	20V
Current - Average Rectified (Io)	3.2A
Voltage - Forward (Vf) (Max) @ If	450mV @ 2A
Current - Reverse Leakage @ Vr	40µA @ 20V
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount

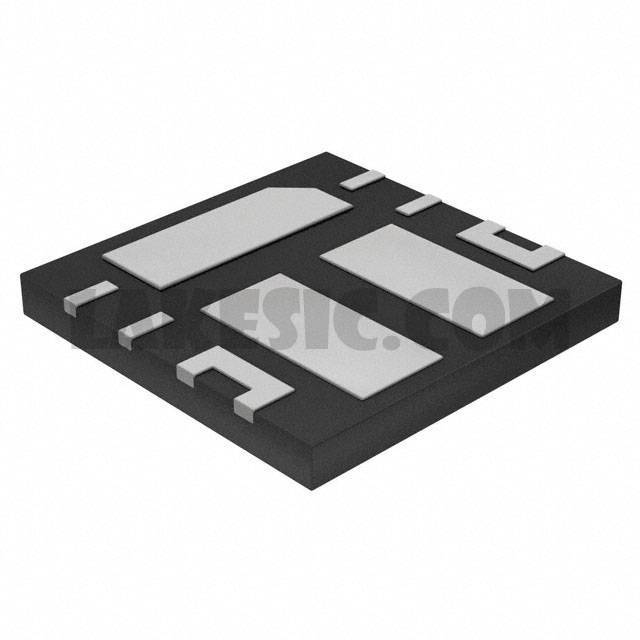

Package / Case	8-UDFN Exposed Pad
Supplier Device Package	8-UDFN (4x4)

DF005S-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V Surface Mount DFS,	View
MB8S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 800V Surface Mount MBS-1,	View
CDBHM240L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount MBS-2,	View
CD-HD201	Bourns Inc., Bridge Rectifier Single Phase Schottky 100V Surface Mount,	View
MB10FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBF,	View
Z4DGP408L-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount Z4-D,	View
MB1S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 100V Surface Mount MBS-1,	View
DBLS102G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 100V Surface Mount DBLS,	View
NMLU1210TWG	ON Semiconductor, Bridge Rectifier Single Phase Schottky 20V Surface Mount 8-UDFN (4x4),	View
ABS15J REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS,	View
FMN1T148	Rohm Semiconductor, Bridge Rectifier Single Phase Standard 80V Surface Mount SMT5,	View
MB1S	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-SOIC,	View

NMLU1210TWG

Part NumberNMLU1210TWG
