Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	4.7µH
Tolerance	±20%
Current Rating (Amps)	750mA
Current - Saturation	900mA
Shielding	Shielded
DC Resistance (DCR)	252mOhm Max
Q @ Freq	-
Frequency - Self Resonant	47MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.039" (1.00mm)

NRS3015T3R3MNGHV	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 1.23A 93.6mOhm Max Nonstandard, NR, S Type	View
NRH2410T100MNV	Taiyo Yuden, 10µH Shielded Wirewound Inductor 450mA 828mOhm Max Nonstandard, NR, H Type	View
NRS6028T470MMGJ	Taiyo Yuden, 47µH Shielded Wirewound Inductor 920mA 390mOhm Max Nonstandard, NR, S Type	View
NRH3010T1R5NN	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 1.37A 90mOhm Max Nonstandard, NR, H Type	View
NRH3012T1R0NNV	Taiyo Yuden, 1µH Shielded Wirewound Inductor 1.71A 57.6mOhm Max Nonstandard, NR, H Type	View
NRV2010TR47NGF	Taiyo Yuden, 470nH Shielded Wirewound Inductor 2A 52mOhm Nonstandard, NR, V Type	View
NRS6020T3R3NMGJ	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 2.75A 48mOhm Max Nonstandard, NR, S Type	View
NRS6014T1R2NMGG	Taiyo Yuden, 1.2µH Shielded Wirewound Inductor 3.2A 50.4mOhm Max Nonstandard, NR, S Type	View
NRS5010T2R2NMGF	Taiyo Yuden, 2.2µH Unshielded Wirewound Inductor 1.6A 126mOhm Max Nonstandard, NR, S Type	View
NRV2010T4R7MGFV	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 820mA 320mOhm Nonstandard, NR, V Type	View
NRS8040T6R8NJGJ	Taiyo Yuden, 6.8µH Shielded Wirewound Inductor 3.7A 32.5mOhm Max Nonstandard, NR, S Type	View
NRV2012T4R7MGFV	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 750mA 390mOhm Max Nonstandard, NR, V Type	View

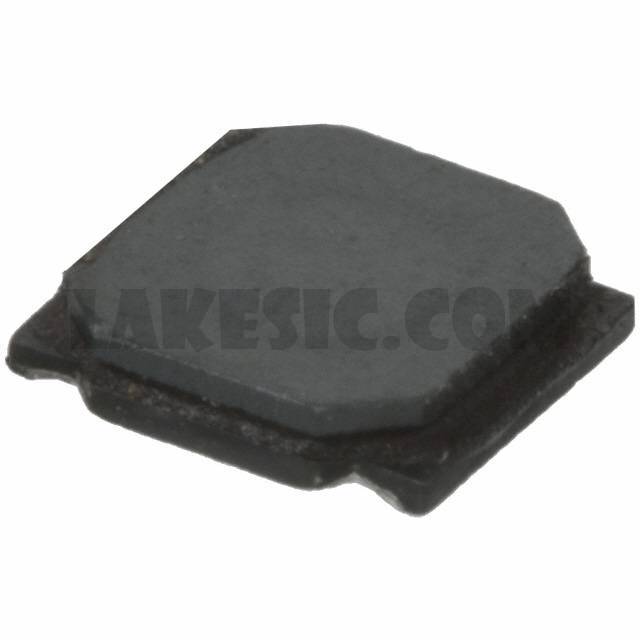

NR4010T4R7M
