Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	33µH
Tolerance	±20%
Current Rating (Amps)	530mA
Current - Saturation	590mA
Shielding	Shielded
DC Resistance (DCR)	840mOhm Max
Q @ Freq	-
Frequency - Self Resonant	8MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.047" (1.20mm)

NRS3015T3R3MNGHV	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 1.23A 93.6mOhm Max Nonstandard, NR, S Type	View
NRS5024T220MMGJV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 820mA 276mOhm Max Nonstandard, NR, S Type	View
NRS8030T1R5NJGJ	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 5.3A 15.6mOhm Max Nonstandard, NR, S Type	View
NRS4018T220MDGJV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 720mA 348mOhm Max Nonstandard, NR, S Type	View
NRS8030T4R7MJGJ	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 4A 28.6mOhm Max Nonstandard, NR, S Type	View
NRS5030T3R3MMGJV	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 3A 39mOhm Max Nonstandard, NR, S Type	View
NRH3012T4R7MNV	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.06A 156mOhm Max Nonstandard, NR, H Type	View
NRS4010T4R7MDGG	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.2A 168mOhm Max Nonstandard, NR, S Type	View
NR10050T470M	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 1.8A 119.6mOhm Max Nonstandard, NR	View
NRS4018T470MDGJ	Taiyo Yuden, 47µH Shielded Wirewound Inductor 440mA 780mOhm Max Nonstandard, NR, S Type	View
NR8040T2R0N	Taiyo Yuden, 2µH Shielded Wirewound Inductor 6.3A 11.7mOhm Max Nonstandard, NR	View
NRS5014T1R2NMGGV	Taiyo Yuden, 1.2µH Shielded Wirewound Inductor 2.4A 54mOhm Max Nonstandard, NR, S Type	View

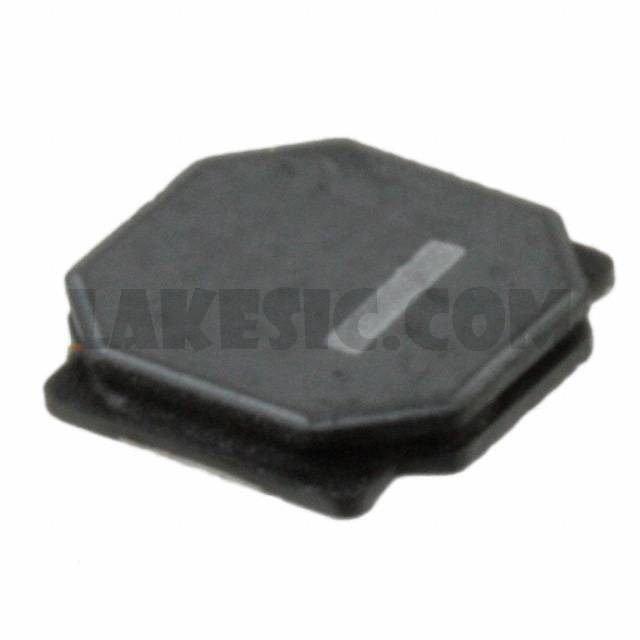

NR6012T330ME
