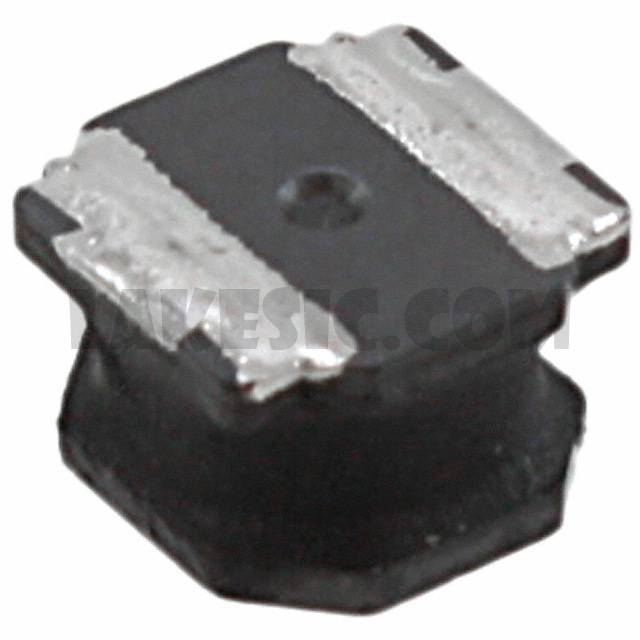

NR6045T680M


NR6045T680M

Part NumberNR6045T680M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NR6045T680M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1500
ManufacturerTaiyo Yuden
SeriesNR
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance68µH
Tolerance±20%
Current Rating (Amps)900mA
Current - Saturation1A
ShieldingShielded
DC Resistance (DCR)429mOhm Max
Q @ Freq-
Frequency - Self Resonant4MHz
Ratings-
Operating Temperature-25°C ~ 120°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)0.177" (4.50mm)
