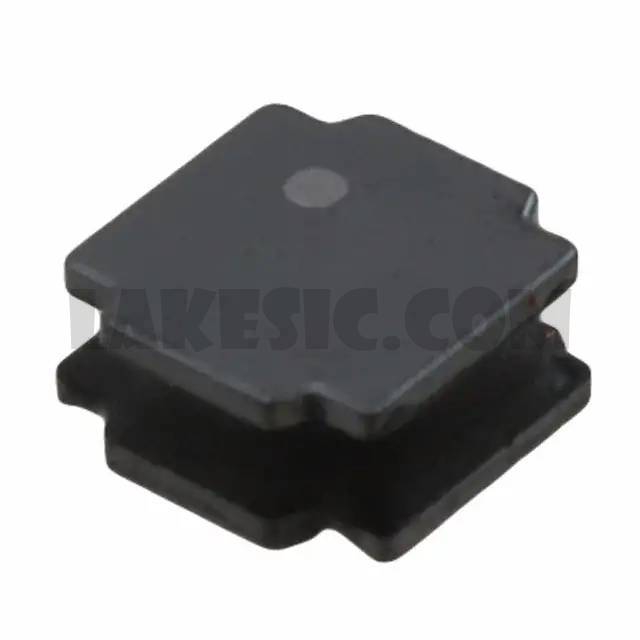

NR8040T1R4N


NR8040T1R4N

Part NumberNR8040T1R4N

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NR8040T1R4N - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerTaiyo Yuden
SeriesNR
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1.4µH
Tolerance±30%
Current Rating (Amps)7A
Current - Saturation9A
ShieldingShielded
DC Resistance (DCR)9.1mOhm Max
Q @ Freq-
Frequency - Self Resonant63MHz
Ratings-
Operating Temperature-25°C ~ 120°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)0.157" (4.00mm)
