Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NRS6010T4R7MMGF View all Specification
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR, S Type
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	4.7µH
Tolerance	±20%
Current Rating (Amps)	1.4A
Current - Saturation	1.3A
Shielding	Shielded
DC Resistance (DCR)	198mOhm Max
Q @ Freq	-
Frequency - Self Resonant	36MHz
Ratings	-
Operating Temperature	-25°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	2304 (6010 Metric)
Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.039" (1.00mm)

NRS6020T4R7NMGJ	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 2.15A 69.6mOhm Max Nonstandard, NR, S Type	View
NRH2412T100MNGHV	Taiyo Yuden, 10µH Shielded Wirewound Inductor 450mA 720mOhm Max Nonstandard, NR, H Type	View
NR4010T100M	Taiyo Yuden, 10µH Shielded Wirewound Inductor 600mA 456mOhm Max Nonstandard, NR	View
NRS5020TR47NMGJV	Taiyo Yuden, 470nH Shielded Wirewound Inductor 5A 14.4mOhm Max Nonstandard, NR, S Type	View
NRS4010T220MDGG	Taiyo Yuden, 22µH Shielded Wirewound Inductor 500mA 684mOhm Max Nonstandard, NR, S Type	View
NRH2412T3R3MNGH	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 750mA 225mOhm Nonstandard, NR, H Type	View
NRS6020T4R7NMGJ	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 2.15A 69.6mOhm Max Nonstandard, NR, S Type	View
NRS6045T100MMGK	Taiyo Yuden, 10µH Shielded Wirewound Inductor 2.4A 59.8mOhm Max Nonstandard, NR, S Type	View
NRS5012T2R2MMGF	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2A 102mOhm Max 2005 (5012 Metric), NR, S Type	View
NRS5040T220MMGKV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1.4A 163.8mOhm Max Nonstandard, NR, S Type	View
NRH3012T100MN	Taiyo Yuden, 10µH Shielded Wirewound Inductor 720mA 324mOhm Max Nonstandard, NR, H Type	View
NR6028T100M	Taiyo Yuden, 10µH Shielded Wirewound Inductor 1.9A 84.5mOhm Max Nonstandard, NR	View

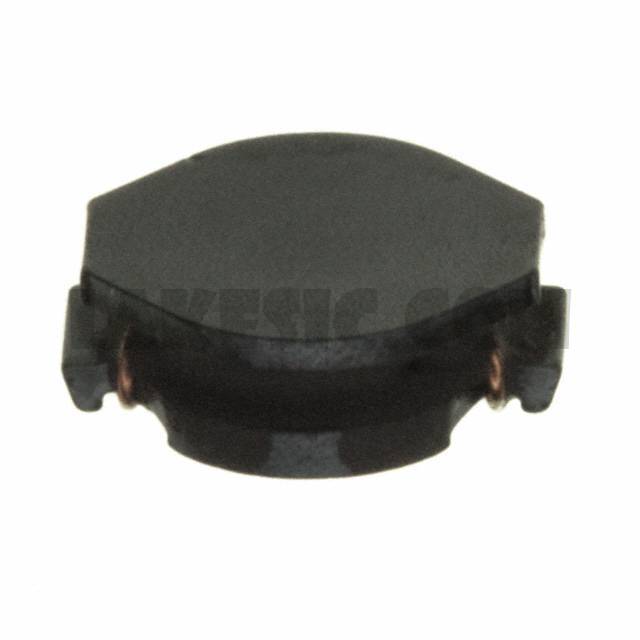

NRS6010T4R7MMGF
