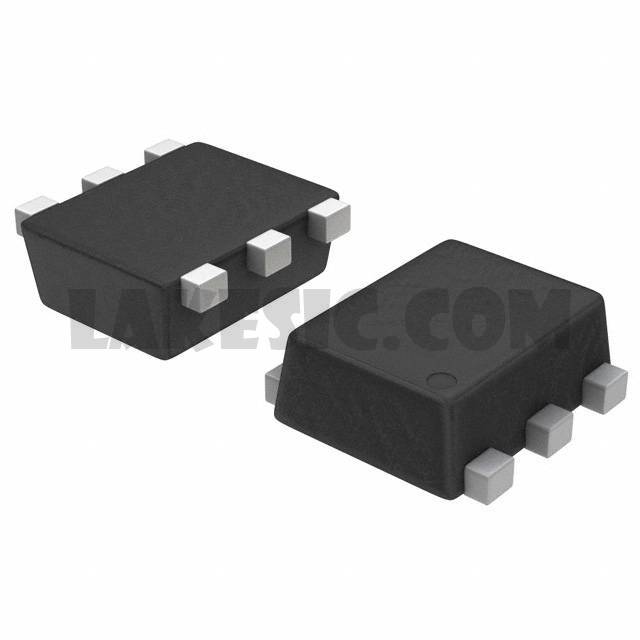

NSR0115CQP6T5G

Part NumberNSR0115CQP6T5G

ManufacturerON Semiconductor

DescriptionDIODE ARRAY SCHOTTKY 15V SOT963

DatasheetNSR0115CQP6T5G

Package / CaseSOT-963

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Pair Common Cathode Schottky 15V 100mA (DC) Surface Mount SOT-963

To learn about the specification of NSR0115CQP6T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSR0115CQP6T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSR0115CQP6T5G.
We are offering NSR0115CQP6T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSR0115CQP6T5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	NSR0115CQP6T5G
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	2 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	15V
Current - Average Rectified (Io) (per Diode)	100mA (DC)
Voltage - Forward (Vf) (Max) @ If	180mV @ 10µA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	15µA @ 10V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	SOT-963
Supplier Device Package	SOT-963
