NSS20501UW3T2G

NSS20501UW3T2G

Part NumberNSS20501UW3T2G

ManufacturerON Semiconductor

DescriptionTRANS NPN 20V 5A 3-WDFN

DatasheetNSS20501UW3T2G

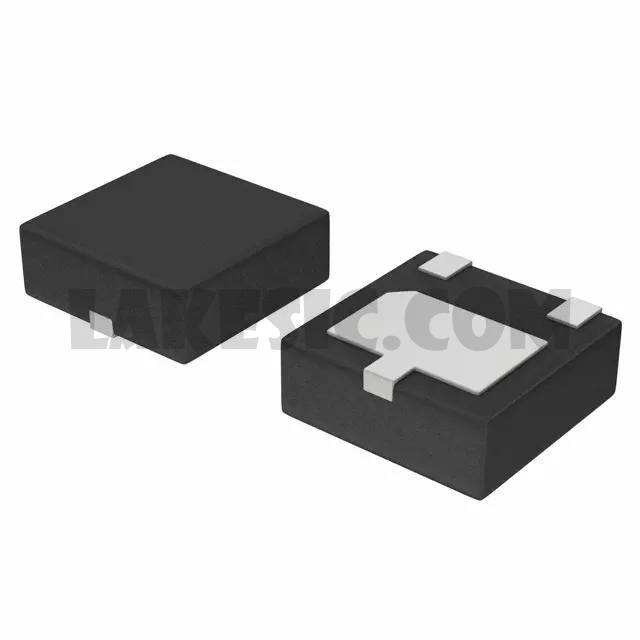

Package / Case3-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 20V 5A 150MHz 875mW Surface Mount 3-WDFN (2x2)

To learn about the specification of NSS20501UW3T2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSS20501UW3T2G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSS20501UW3T2G.
We are offering NSS20501UW3T2G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSS20501UW3T2G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	NSS20501UW3T2G
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	5A
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	125mV @ 400mA, 4A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2A, 2V
Power - Max	875mW
Frequency - Transition	150MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-WDFN Exposed Pad
Supplier Device Package	3-WDFN (2x2)
Base Part Number	NSS20501
