NTD4970N-35G

NTD4970N-35G

Part NumberNTD4970N-35G

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 38A IPAK

DatasheetNTD4970N

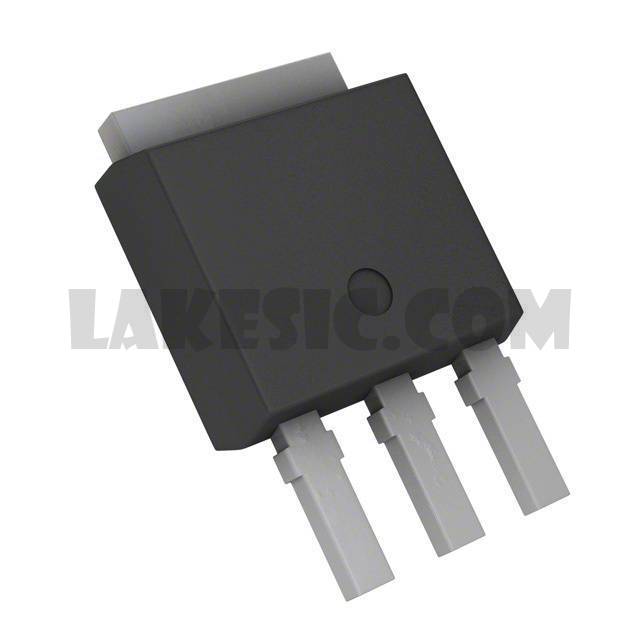

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 8.5A (Ta), 36A (Tc) 1.38W (Ta), 24.6W (Tc) Through Hole I-PAK

To learn about the specification of NTD4970N-35G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTD4970N-35G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTD4970N-35G.
We are offering NTD4970N-35G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTD4970N-35G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTD4970N
Standard Package	75
Manufacturer	ON Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	8.5A (Ta), 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	11mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.2nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	774pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.38W (Ta), 24.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Stub Leads, IPak
