NTGD3148NT1G


NTGD3148NT1G

Part NumberNTGD3148NT1G

Manufacturer

Description

Datasheet

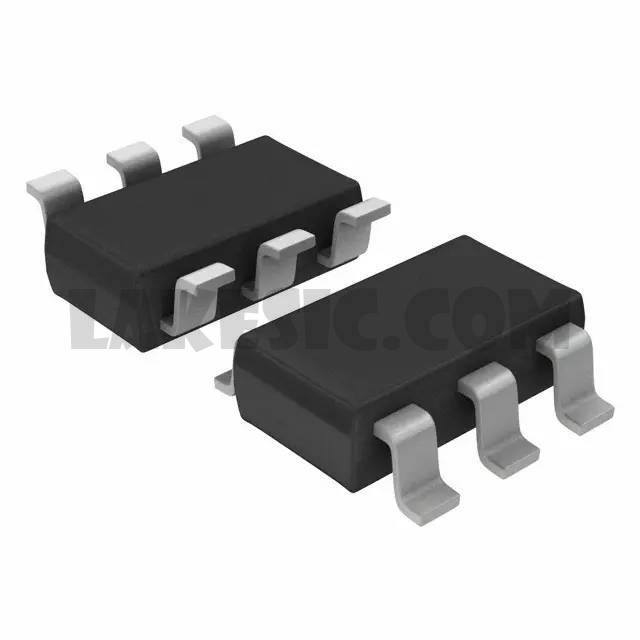

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NTGD3148NT1G - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package3000
ManufacturerON Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C3A
Rds On (Max) @ Id, Vgs70mOhm @ 3.5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds300pF @ 10V
Power - Max900mW
Operating Temperature-50°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device Package6-TSOP
Base Part NumberNTGD3148N
