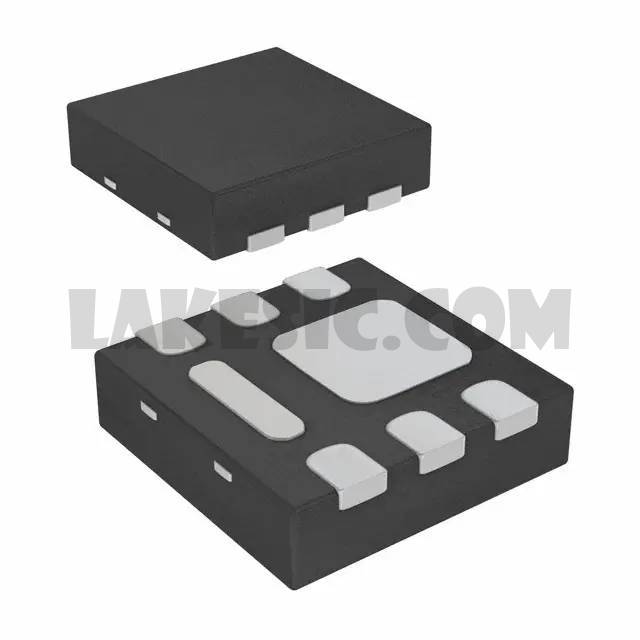

NTLUS3A40PZTAG

NTLUS3A40PZTAG

Part NumberNTLUS3A40PZTAG

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 4A 6UDFN

DatasheetNTLUS3A40PZ

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 4A (Ta) 700mW (Ta) Surface Mount 6-UDFN (2x2)

To learn about the specification of NTLUS3A40PZTAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLUS3A40PZTAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLUS3A40PZTAG.
We are offering NTLUS3A40PZTAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLUS3A40PZTAG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTLUS3A40PZ
Standard Package	1
Manufacturer	ON Semiconductor
Series	µCool™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	29mOhm @ 6.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2600pF @ 15V
FET Feature	-
Power Dissipation (Max)	700mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (2x2)
Package / Case	6-UDFN Exposed Pad
