NTND31015NZTAG

Part NumberNTND31015NZTAG

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 20V 0.2A XLLGA6

DatasheetNTND31015NZ

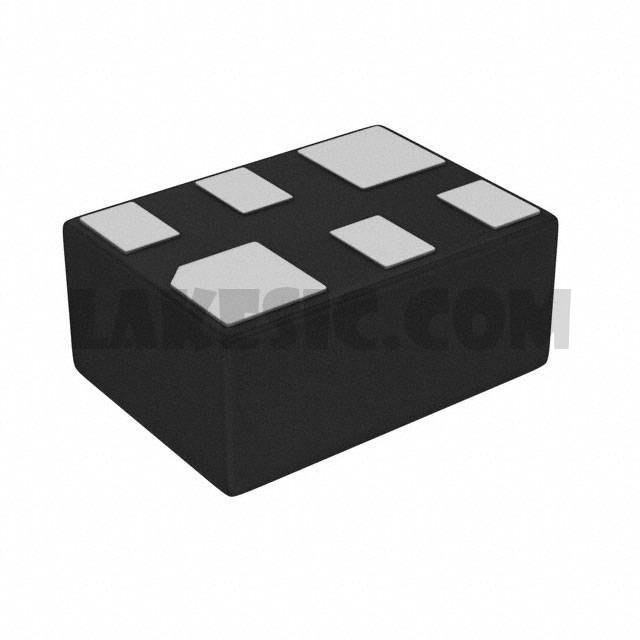

Package / Case6-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 20V 200mA 125mW Surface Mount 6-XLLGA (.90x.65)

To learn about the specification of NTND31015NZTAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTND31015NZTAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTND31015NZTAG.
We are offering NTND31015NZTAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTND31015NZTAG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NTND31015NZ
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	200mA
Rds On (Max) @ Id, Vgs	1.5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	12.3pF @ 15V
Power - Max	125mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFLGA
Supplier Device Package	6-XLLGA (.90x.65)
