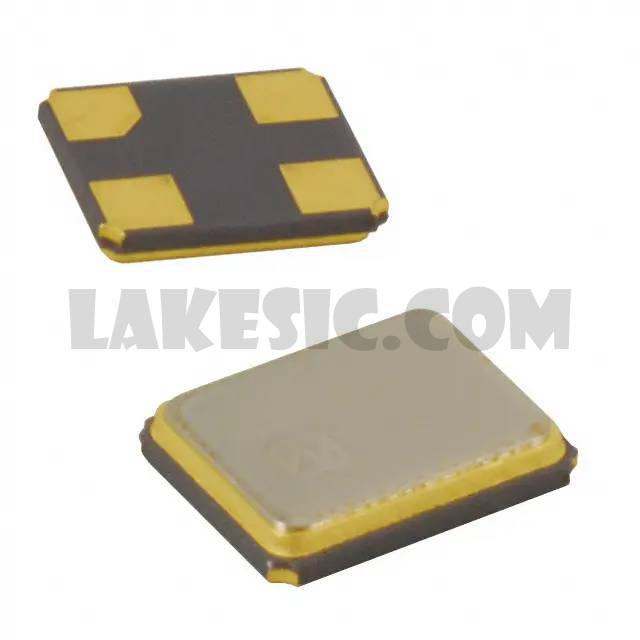

NX3225SA-24.000M-STD-CSR-1


NX3225SA-24.000M-STD-CSR-1

Part NumberNX3225SA-24.000M-STD-CSR-1

Manufacturer

Description

Datasheet

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NX3225SA-24.000M-STD-CSR-1 - Product Attributes

Categories Crystals, Oscillators, Resonators / Crystals
Datasheet
Standard Package3000
ManufacturerNDK America, Inc.
SeriesNX3225SA
PackagingTape & Reel (TR)
Part StatusActive
TypeMHz Crystal
Frequency24MHz
Frequency Stability±15ppm
Frequency Tolerance±15ppm
Load Capacitance8pF
ESR (Equivalent Series Resistance)50 Ohms
Operating ModeFundamental
Operating Temperature-10°C ~ 75°C
Ratings-
Mounting TypeSurface Mount
Package / Case4-SMD, No Lead
Size / Dimension0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)0.024" (0.60mm)
