PA2755NL
PA2755NL

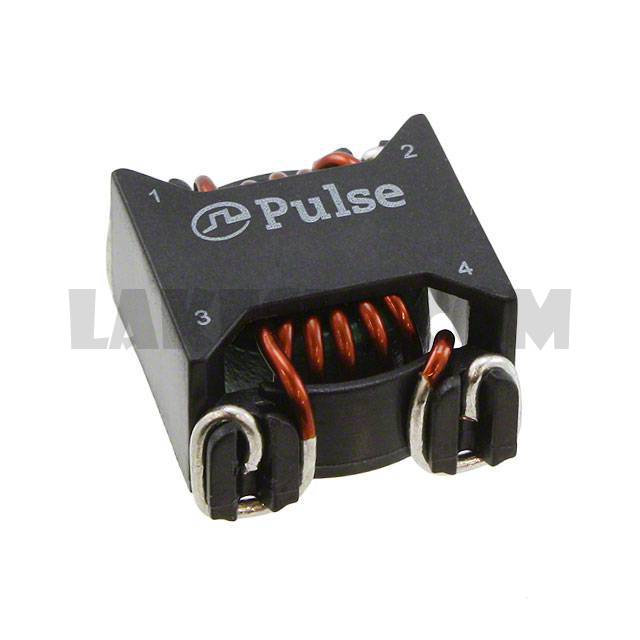

Part Number PA2755NL Description COMMON MODE CHOKE 14A 2LN SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 14A DCR 1.95mOhm
To learn about the specification of PA2755NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA2755NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA2755NL.
We are offering PA2755NL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PA2755NL - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet PAyyyyNL Datasheet Standard Package 25 Manufacturer Pulse Electronics Power Series - Packaging Tube Part Status Active Filter Type - Number of Lines 2 Current Rating (Max) 14A DC Resistance (DCR) (Max) 1.95mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 130°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.750" L x 0.815" W (19.05mm x 20.70mm) Height (Max) 0.440" (11.18mm) Package / Case Horizontal, 4 PC Pad
