Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	PBSS2540M
Standard Package	10000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	250mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 100mA, 2V
Power - Max	430mW
Frequency - Transition	450MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

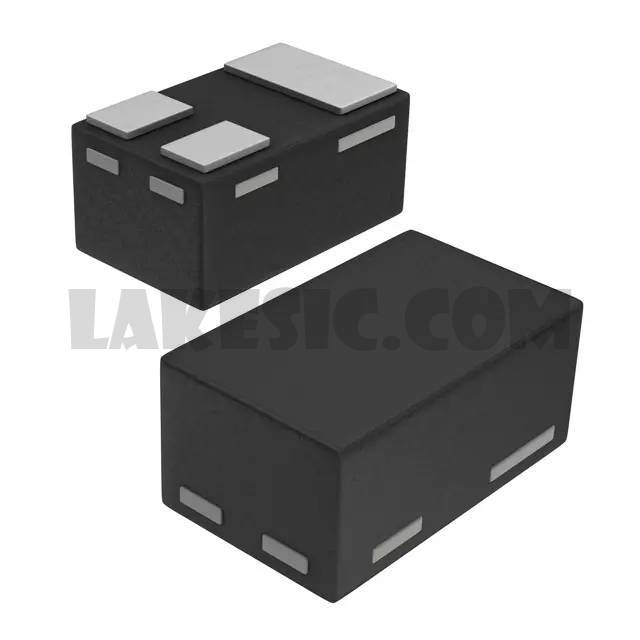

Package / Case	SC-101, SOT-883
Supplier Device Package	DFN1006-3
Base Part Number	PBSS2540
