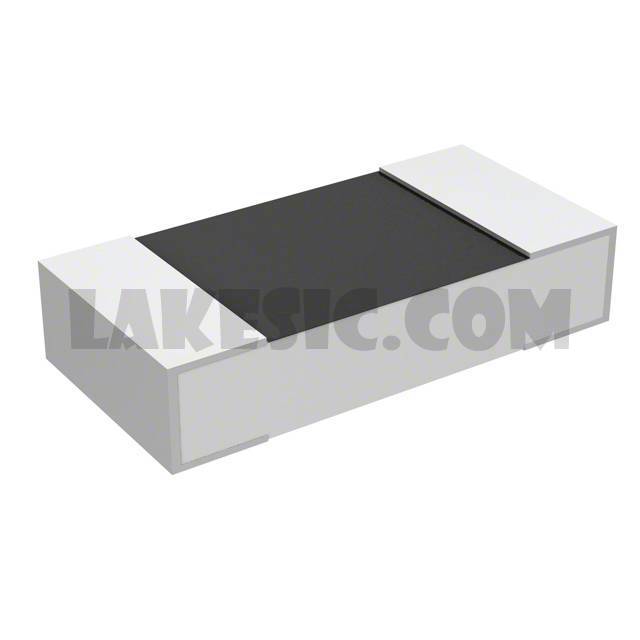

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	PCR Series
Standard Package	5000
Manufacturer	Riedon
Series	PCR
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	4.7 kOhms
Tolerance	±5%
Power (Watts)	0.333W, 1/3W
Composition	Thick Film
Features	Pulse Withstanding
Temperature Coefficient	±100ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Size / Dimension	0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max)	0.026" (0.65mm)
Number of Terminations	2
Failure Rate	-
