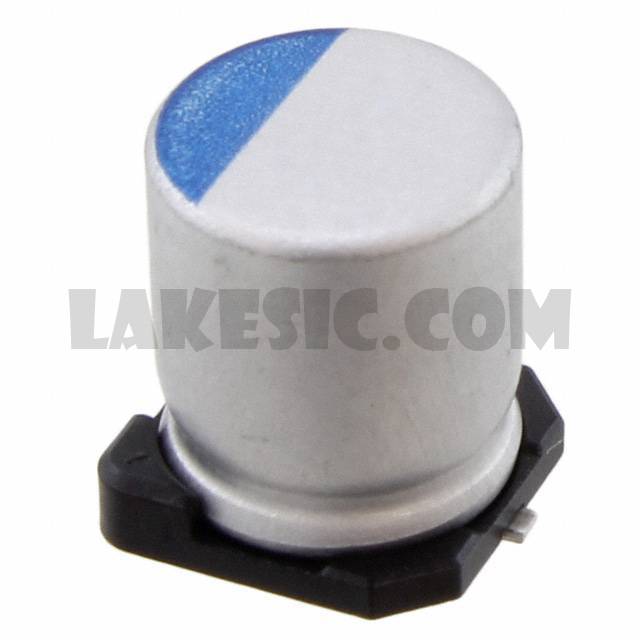

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCX Series
Standard Package	1
Manufacturer	Nichicon
Series	PCX
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	30mOhm
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.9A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCX1E560MCS1GS	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 1500 Hrs @ 125°C, PCX	View
PCX1C151MCL6GS	Nichicon, 150µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D560MCL1GS	Nichicon, 56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 50mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D181MCL1GS	Nichicon, 180µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V390MCL6GS	Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E390MCL1GS	Nichicon, 39µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E390MCL1GS	Nichicon, 39µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V100MCL1GS	Nichicon, 10µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 85mOhm 1500 Hrs @ 125°C, PCX	View
PCX1V680MCS1GS	Nichicon, 68µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H330MCS1GS	Nichicon, 33µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 31mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D680MCL1GS	Nichicon, 68µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 34mOhm 1500 Hrs @ 125°C, PCX	View
PCX1E820MCL6GS	Nichicon, 82µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 3000 Hrs @ 125°C, PCX	View

PCX1E820MCL6GS

Part NumberPCX1E820MCL6GS
