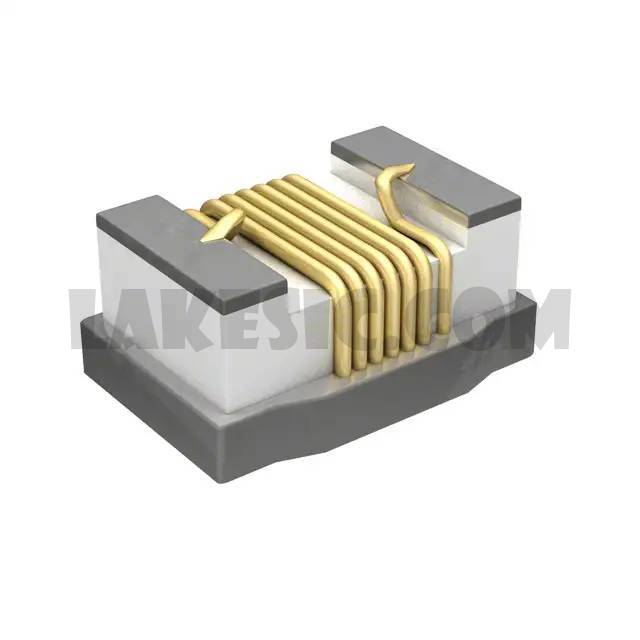

PE-0805CM100JTT

PE-0805CM100JTT

Part NumberPE-0805CM100JTT

ManufacturerPulse Electronics Network

DescriptionFIXED IND 10NH 600MA 100 MOHM

DatasheetRF Chip Inductors

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10nH Unshielded Wirewound Inductor 600mA 100mOhm Max 0805 (2012 Metric)

To learn about the specification of PE-0805CM100JTT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-0805CM100JTT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-0805CM100JTT.
We are offering PE-0805CM100JTT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-0805CM100JTT - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RF Chip Inductors
Standard Package	2000
Manufacturer	Pulse Electronics Network
Series	0805CM
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	10nH
Tolerance	±5%
Current Rating (Amps)	600mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	60 @ 500MHz
Frequency - Self Resonant	3.9GHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	250MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max)	0.062" (1.58mm)
