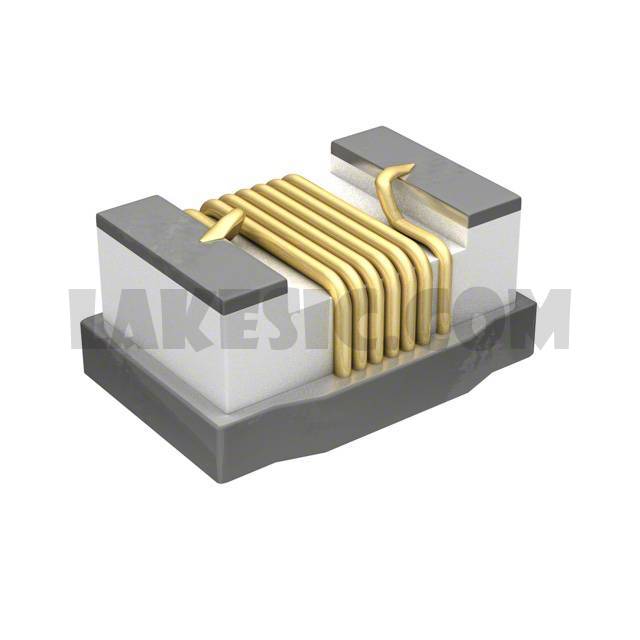

PE-1008CD391GTT

PE-1008CD391GTT

Part NumberPE-1008CD391GTT

ManufacturerPulse Electronics Network

DescriptionFIXED IND 390NH 470MA 1.12 OHM

DatasheetRF Chip Inductors

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description390nH Unshielded Wirewound Inductor 470mA 1.12Ohm Max 1008 (2520 Metric)

To learn about the specification of PE-1008CD391GTT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-1008CD391GTT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-1008CD391GTT.
We are offering PE-1008CD391GTT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-1008CD391GTT - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RF Chip Inductors
Standard Package	1
Manufacturer	Pulse Electronics Network
Series	1008CD
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	390nH
Tolerance	±2%
Current Rating (Amps)	470mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1.12Ohm Max
Q @ Freq	45 @ 100MHz
Frequency - Self Resonant	475MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	25MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max)	0.090" (2.29mm)
