Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	60
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	178µH
Tolerance	±20%
Current Rating (Amps)	160mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	2.8Ohm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.340" L x 0.340" W (8.64mm x 8.64mm)
Height - Seated (Max)	0.270" (6.86mm)

PE-54041NL	Pulse Electronics Power, 25µH Shielded Toroidal Inductor 3A 40mOhm Radial, Vertical (Open),	View
PE-53933SNLT	Pulse Electronics Power, 24µH Shielded Toroidal Inductor 2.74A 70mOhm Nonstandard,	View
PE-53932SNLT	Pulse Electronics Power, 37µH Shielded Toroidal Inductor 2.24A 100mOhm Nonstandard,	View
PE-53117NL	Pulse Electronics Power, 330µH Unshielded Toroidal Inductor 3A 150mOhm Max Radial, Vertical (Open),	View
PE-53933SNLT	Pulse Electronics Power, 24µH Shielded Toroidal Inductor 2.74A 70mOhm Nonstandard,	View
PE-53819SNLT	Pulse Electronics Power, 173µH Shielded Toroidal Inductor 540mA 600mOhm Nonstandard,	View
PE-53116NL	Pulse Electronics Power, 220µH Unshielded Toroidal Inductor 3A 70mOhm Max Radial, Vertical (Open),	View
PE-53932SNL	Pulse Electronics Power, 37µH Shielded Toroidal Inductor 2.24A 100mOhm Nonstandard,	View
PE-53808SNL	Pulse Electronics Power, 374µH Shielded Toroidal Inductor 200mA 2.7Ohm Nonstandard,	View
PE-53830SNL	Pulse Electronics Power, 77µH Shielded Toroidal Inductor 1.54A 200mOhm Nonstandard,	View
PE-53118NL	Pulse Electronics Power, 470µH Unshielded Toroidal Inductor 2A 170mOhm Max Radial, Vertical (Open),	View
PE-53818SNL	Pulse Electronics Power, 252µH Shielded Toroidal Inductor 440mA 900mOhm Nonstandard,	View

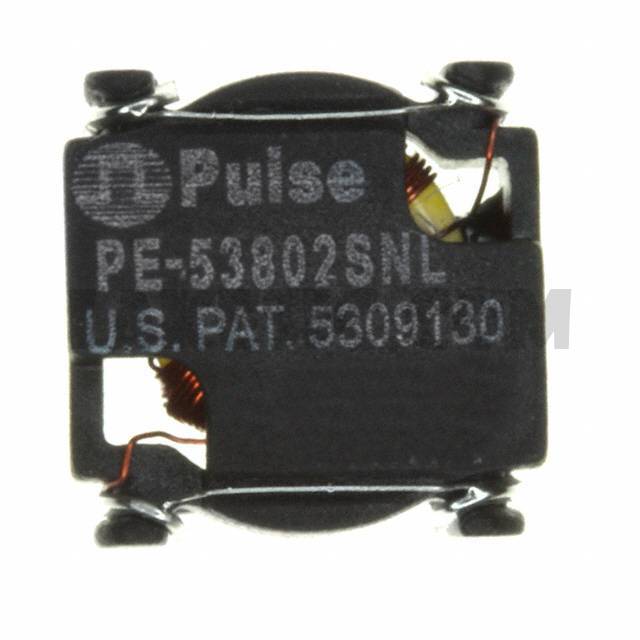

PE-53802SNL

Part NumberPE-53802SNL
