Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	45
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	374µH
Tolerance	±20%
Current Rating (Amps)	200mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	2.7Ohm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.440" L x 0.435" W (11.18mm x 11.05mm)
Height - Seated (Max)	0.360" (9.14mm)

PE-54038NL	Pulse Electronics Power, 77µH Shielded Toroidal Inductor 2.7A 90mOhm Radial, Vertical (Open),	View
PE-53820SNLT	Pulse Electronics Power, 115µH Shielded Toroidal Inductor 670mA 400mOhm Nonstandard,	View
PE-53932SNLT	Pulse Electronics Power, 37µH Shielded Toroidal Inductor 2.24A 100mOhm Nonstandard,	View
P0846SNLT	Pulse Electronics Power, 15µH Shielded Toroidal Inductor 5A 27mOhm Nonstandard, LCI-50	View
PE-53819SNLT	Pulse Electronics Power, 173µH Shielded Toroidal Inductor 540mA 600mOhm Nonstandard,	View
PE-53932SNLT	Pulse Electronics Power, 37µH Shielded Toroidal Inductor 2.24A 100mOhm Nonstandard,	View
PE-54041SNLT	Pulse Electronics Power, 25µH Shielded Toroidal Inductor 3A 40mOhm Nonstandard,	View
PE-54036NL	Pulse Electronics Power, 168µH Shielded Toroidal Inductor 1.81A 180mOhm Radial, Vertical (Open),	View
PE-53810SNL	Pulse Electronics Power, 176µH Shielded Toroidal Inductor 300mA 1.4Ohm Nonstandard,	View
PE-53117NL	Pulse Electronics Power, 330µH Unshielded Toroidal Inductor 3A 150mOhm Max Radial, Vertical (Open),	View
PE-53118NL	Pulse Electronics Power, 470µH Unshielded Toroidal Inductor 2A 170mOhm Max Radial, Vertical (Open),	View
PE-53820SNLT	Pulse Electronics Power, 115µH Shielded Toroidal Inductor 670mA 400mOhm Nonstandard,	View

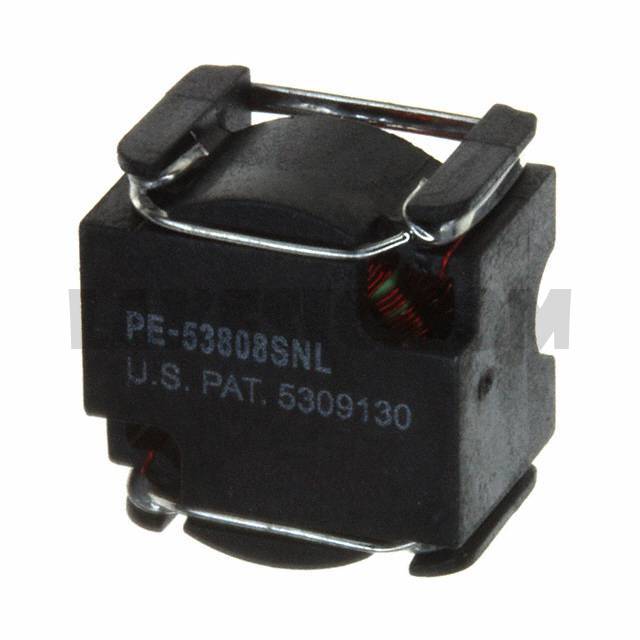

PE-53808SNL

Part NumberPE-53808SNL
