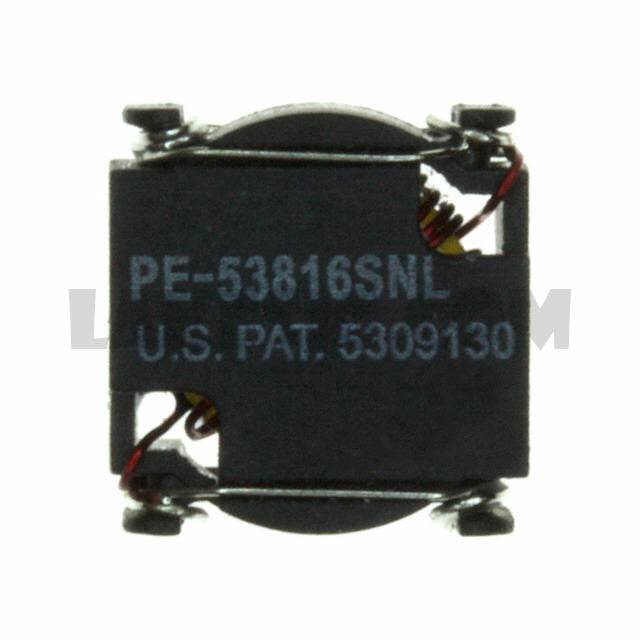

PE-53816SNL


PE-53816SNL

Part NumberPE-53816SNL

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PE-53816SNL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package45
ManufacturerPulse Electronics Power
Series-
PackagingBulk
Part StatusActive
TypeToroidal
Material - Core-
Inductance17µH
Tolerance±20%
Current Rating (Amps)1.02A
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)100mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 130°C
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.440" L x 0.435" W (11.18mm x 11.05mm)
Height - Seated (Max)0.360" (9.14mm)
