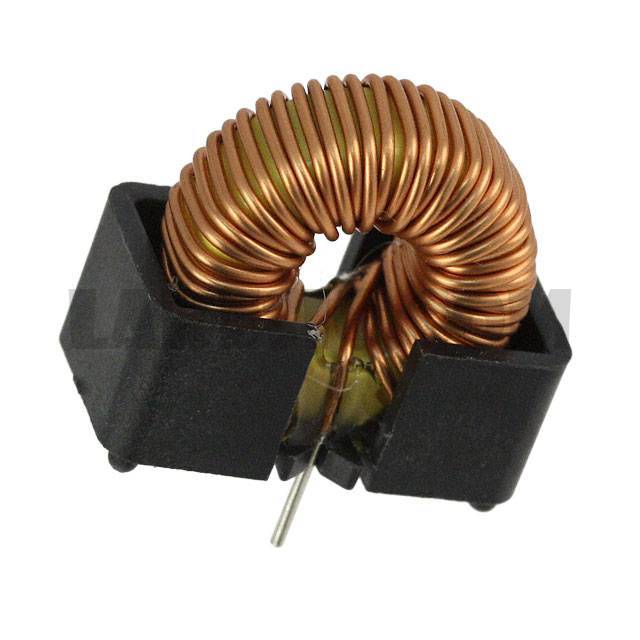

PE-54040NL

PE-54040NL

Part NumberPE-54040NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 38UH 3A 50 MOHM TH

DatasheetTHT/SMT Power Inductors - Toroid, Simple Switcher

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description38µH Shielded Toroidal Inductor 3A 50mOhm Radial, Vertical (Open)

To learn about the specification of PE-54040NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-54040NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-54040NL.
We are offering PE-54040NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-54040NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	70
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	38µH
Tolerance	±20%
Current Rating (Amps)	3A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	50mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Inductance Frequency - Test	20kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	0.830" L x 0.450" W (21.09mm x 11.43mm)
Height - Seated (Max)	0.950" (24.13mm)
