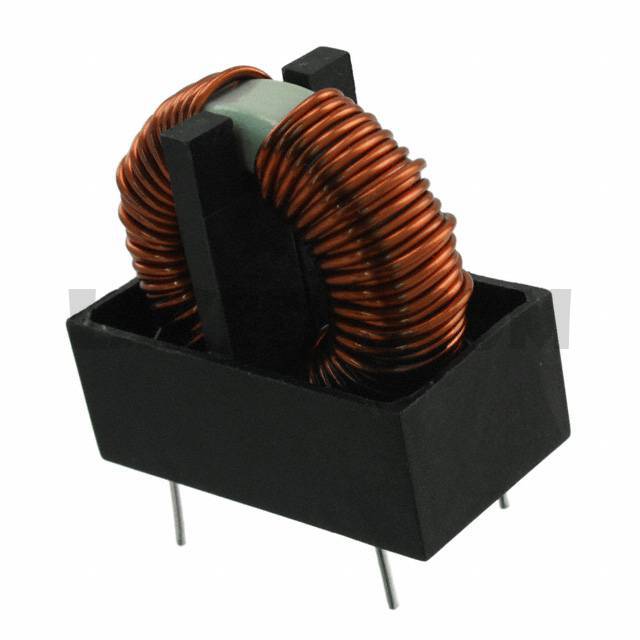

PE-62916NL

Part NumberPE-62916NL

ManufacturerPulse Electronics Power

DescriptionCMC 4MH 5.2A 2LN TH

DatasheetPE-62xxx Common Mode EMI Suppression Inductors

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4mH @ 1kHz 2 Line Common Mode Choke Through Hole 5.2A DCR 40mOhm

To learn about the specification of PE-62916NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-62916NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-62916NL.
We are offering PE-62916NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-62916NL - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	PE-62xxx Common Mode EMI Suppression Inductors
Standard Package	25
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Filter Type	-
Number of Lines	2
Inductance @ Frequency	4mH @ 1kHz
Current Rating (Max)	5.2A
DC Resistance (DCR) (Max)	40mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.440" L x 0.800" W (36.58mm x 20.32mm)
Height (Max)	1.510" (38.35mm)
Package / Case	Vertical, 4 PC Pin
