Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	1000
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max)	0.492" (12.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450RD5220JR06L2	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6470JR06L2	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6100JR17	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5330JR06L2	KEMET, 0.033µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XB4220JB10R17	KEMET, 2200pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4470JR05	KEMET, 4700pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6100JR06L2	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PF6470JF13R06L2	KEMET, 0.47µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KD6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB5100JR06	KEMET, 10000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4390JR05	KEMET, 3900pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View

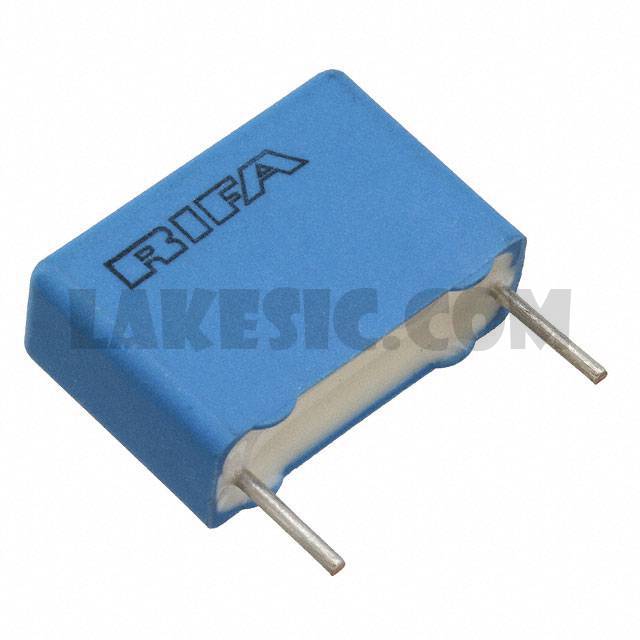

PHE450SB5100JR06

Part NumberPHE450SB5100JR06
