Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	108
Manufacturer	KEMET

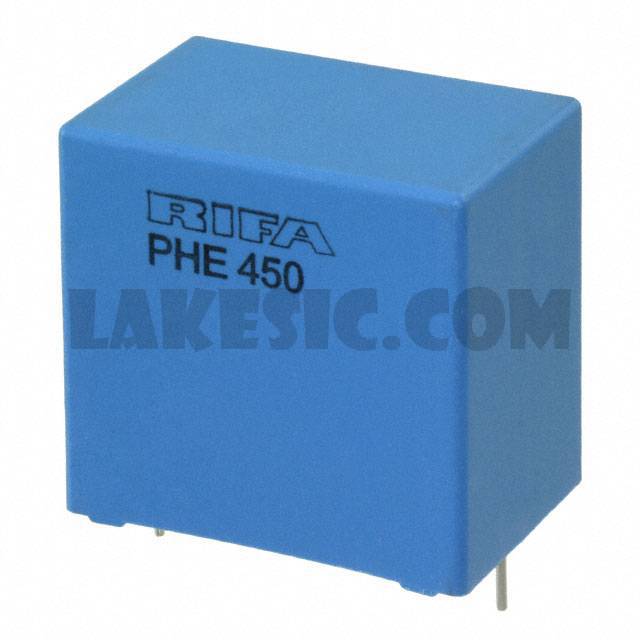

Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	2.2µF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.827" W (31.50mm x 21.00mm)
Height - Seated (Max)	1.181" (30.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450MR7270JR06L2	KEMET, 2.7µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5330JR17	KEMET, 0.033µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4220JR06	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TB5100JB16R17	KEMET, 10000pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5100JD15R06L2	KEMET, 10000pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PK4220JR05	KEMET, 2200pF Film Capacitor 375V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XB4220JB10R17	KEMET, 2200pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6470JR06L2	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6220JR06L2	KEMET, 0.22µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PA5180JR05	KEMET, 0.018µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PR7100JR02R06L2	KEMET, 1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450HK3680JR17	KEMET, 680pF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450KF7220JR06L2

Part NumberPHE450KF7220JR06L2
