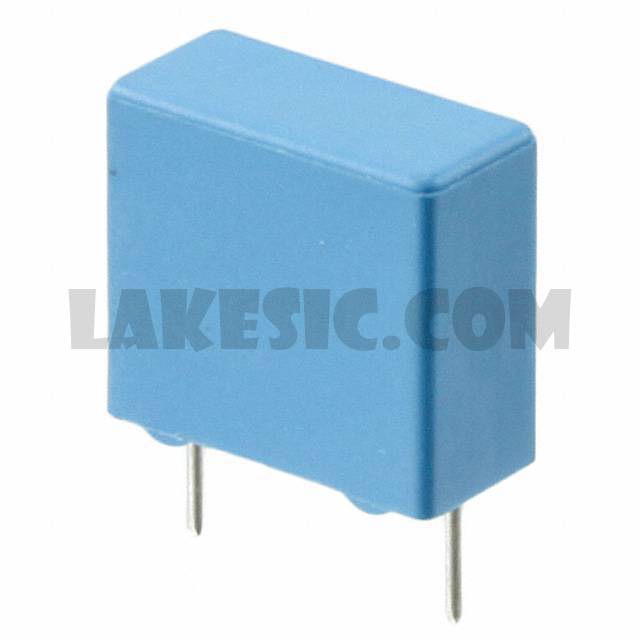

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	600
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	180V
Voltage Rating - DC	250V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450SB5100JR06	KEMET, 10000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MB6100JR06	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK3470JR05	KEMET, 470pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK5100JR05	KEMET, 10000pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MR7220JR06L2	KEMET, 2.2µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450HK3680JR17	KEMET, 680pF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD6100JR06L2	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TB5100JB16R17	KEMET, 10000pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6680JR06L2	KEMET, 0.68µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PB5100JR06	KEMET, 10000pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF7220JR06L2	KEMET, 2.2µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4390JR05	KEMET, 3900pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450HA6100JR05

Part NumberPHE450HA6100JR05
