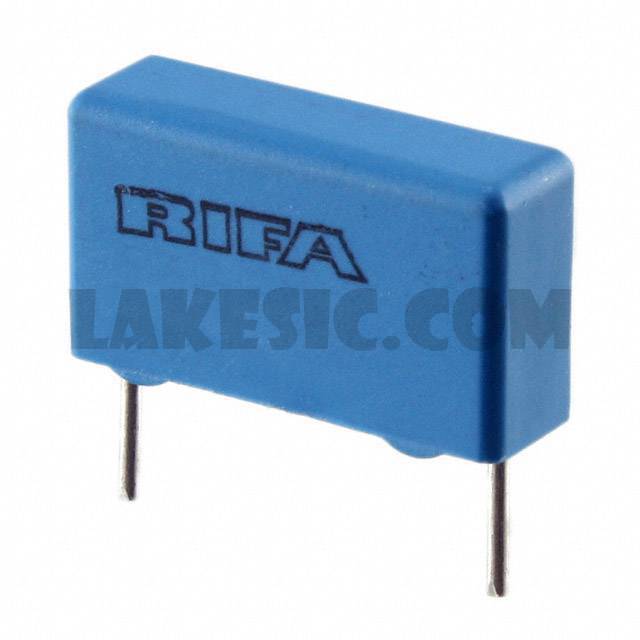

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	800
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	1000pF
Tolerance	±5%
Voltage Rating - AC	1000V (1kV)
Voltage Rating - DC	3000V (3kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max)	0.413" (10.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450KB6220JR17	KEMET, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MA5100JR05	KEMET, 10000pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5470JR06	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TB5100JB16R17	KEMET, 10000pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5330JR06L2	KEMET, 0.033µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4100JR06	KEMET, 1000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6100JR17	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF7100JR06L2	KEMET, 1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD5470JD19R06L2	KEMET, 0.047µF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PR7100JR02R06L2	KEMET, 1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PD5220JR06L2	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5330JR17	KEMET, 0.033µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450XB4100JB04R17

Part NumberPHE450XB4100JB04R17
