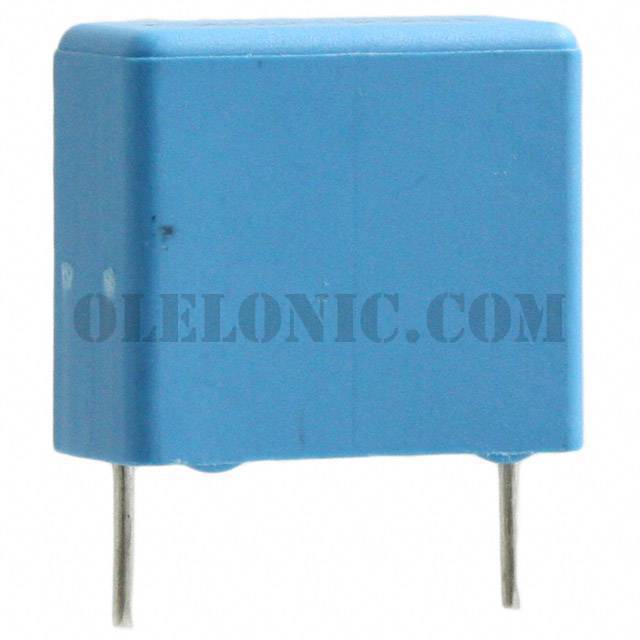

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	300
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.374" W (18.00mm x 9.50mm)
Height - Seated (Max)	0.689" (17.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450HA6100JR05	KEMET, 0.1µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KD6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK5100JR05	KEMET, 10000pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6100JR06L2	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XB4100JB04R17	KEMET, 1000pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6100JR06	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4470JR06	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PF6220JR06L2	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4560JR06	KEMET, 5600pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4220JR06	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD5560JR06L2	KEMET, 0.056µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450KB6220JR17

Part NumberPHE450KB6220JR17
