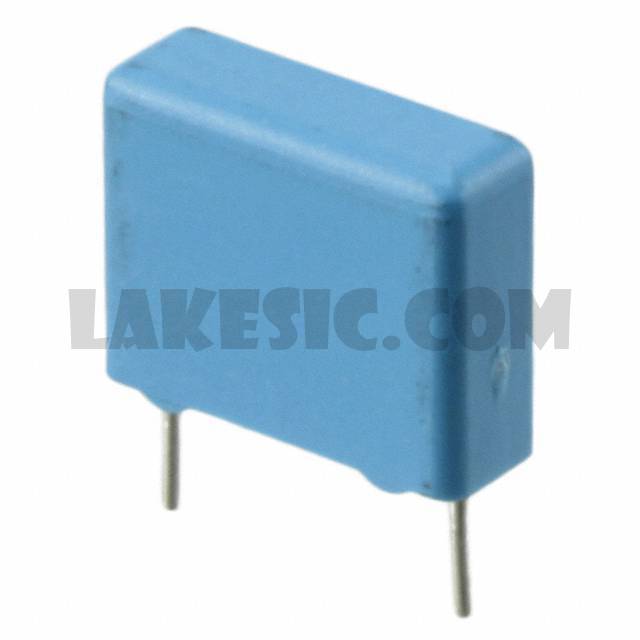

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	1000
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.177" W (13.00mm x 4.50mm)
Height - Seated (Max)	0.413" (10.50mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450MB6100JR06	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PD5220JR06L2	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD4470JR06L2	KEMET, 4700pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5330JR06L2	KEMET, 0.033µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF7220JR06L2	KEMET, 2.2µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6330JR06L2	KEMET, 0.33µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6220JR17	KEMET, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD5470JD19R06L2	KEMET, 0.047µF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XB4470JB14R17	KEMET, 4700pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4270JR05	KEMET, 2700pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5100JR06L2	KEMET, 10000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View

PHE450PA5100JR05

Part NumberPHE450PA5100JR05
