Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	91
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	2.2µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.614" L x 0.748" W (41.00mm x 19.00mm)
Height - Seated (Max)	1.417" (36.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450RB4470JR06	KEMET, 4700pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD4470JR06L2	KEMET, 4700pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MR7220JR06L2	KEMET, 2.2µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK5100JR05	KEMET, 10000pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6220JR17	KEMET, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD5100JR06L2	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PD5220JR06L2	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5470JR06L2	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF7100JR06L2	KEMET, 1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5220JD20R06L2	KEMET, 0.022µF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PK4220JR05	KEMET, 2200pF Film Capacitor 375V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TB5100JB16R17	KEMET, 10000pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View

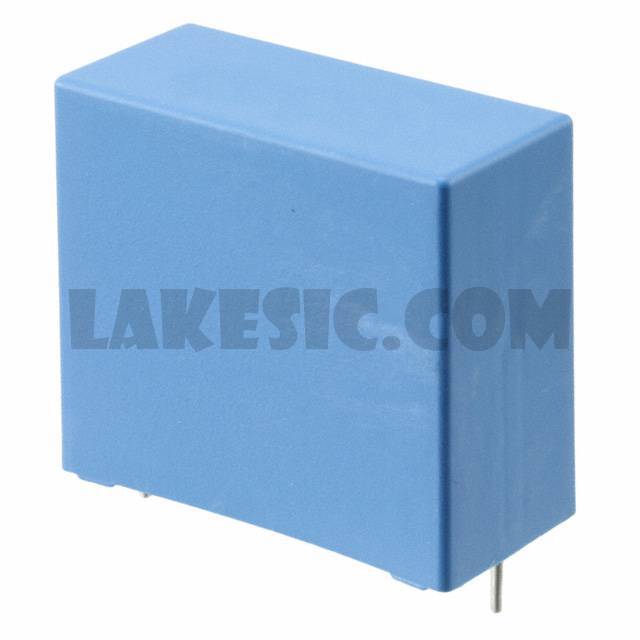

PHE450MR7220JR06L2

Part NumberPHE450MR7220JR06L2
