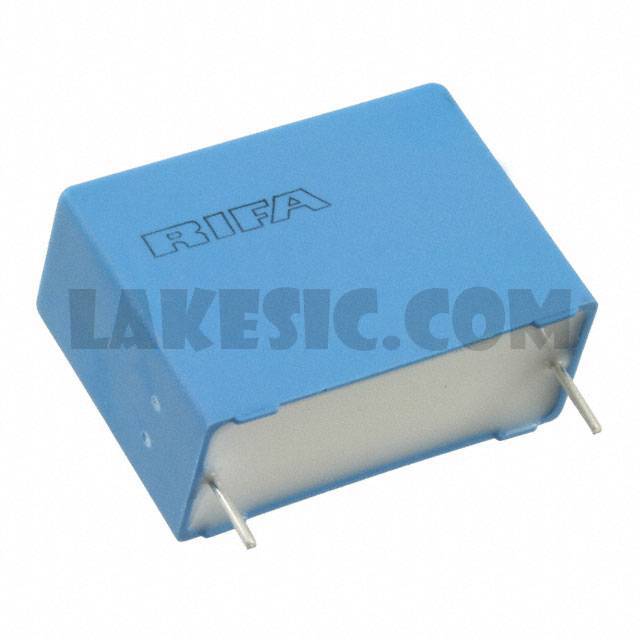

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	153
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.68µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.571" W (31.50mm x 14.50mm)
Height - Seated (Max)	0.965" (24.50mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450MD5470JR06L2	KEMET, 0.047µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5100JD15R06L2	KEMET, 10000pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD4470JR06L2	KEMET, 4700pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4560JR05	KEMET, 5600pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD5470JD19R06L2	KEMET, 0.047µF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PD5220JR06L2	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5100JR06L2	KEMET, 10000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5330JR06L2	KEMET, 0.033µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450HA6100JR05	KEMET, 0.1µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MB5470JR06	KEMET, 0.047µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KD6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6470JR06L2	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450MF6680JR06L2

Part NumberPHE450MF6680JR06L2
