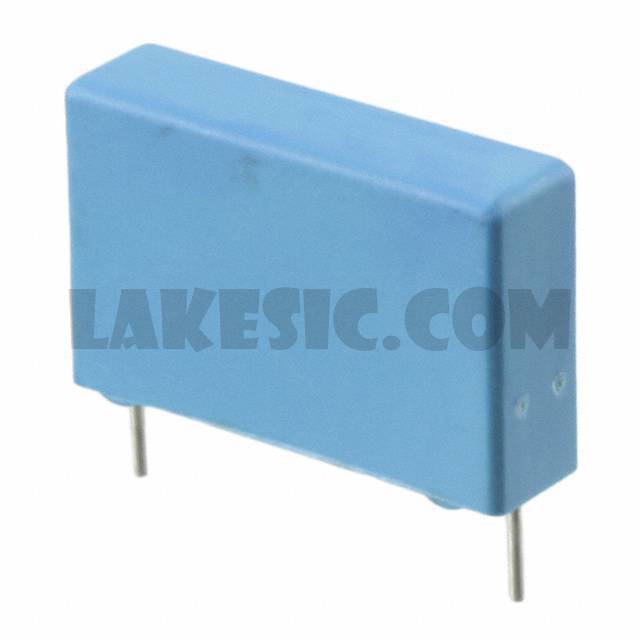

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	216
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.033µF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.276" W (26.00mm x 7.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-
