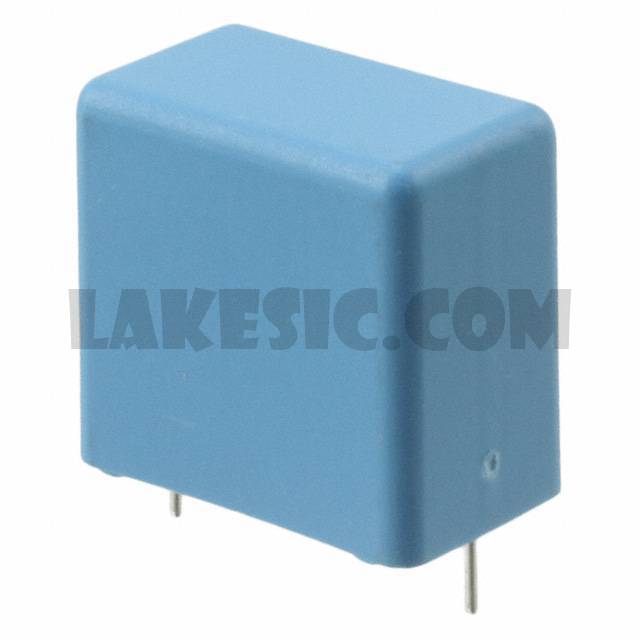

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	176
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.047µF
Tolerance	±5%
Voltage Rating - AC	900V
Voltage Rating - DC	2500V (2.5kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.610" W (26.00mm x 15.50mm)
Height - Seated (Max)	0.965" (24.50mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450HK4470JR05	KEMET, 4700pF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PF6220JR06L2	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PR7100JR02R06L2	KEMET, 1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD6100JR06L2	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4390JR05	KEMET, 3900pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KK3330JR17	KEMET, 330pF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RB4470JR06	KEMET, 4700pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RR6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD5470JD19R06L2	KEMET, 0.047µF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5100JD15R06L2	KEMET, 10000pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF7100JR06L2	KEMET, 1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450TD5470JD19R06L2

Part NumberPHE450TD5470JD19R06L2
