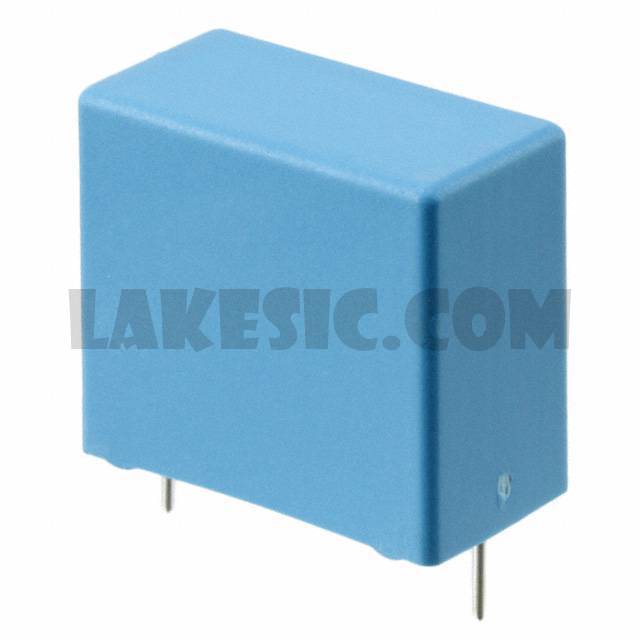

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	209
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.531" W (26.00mm x 13.50mm)
Height - Seated (Max)	0.906" (23.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450MD6330JR06L2	KEMET, 0.33µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KD6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PD5470JR06L2	KEMET, 0.047µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450HA6100JR05	KEMET, 0.1µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PA5100JR05	KEMET, 10000pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RB4470JR06	KEMET, 4700pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD5100JR06L2	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PK4220JR05	KEMET, 2200pF Film Capacitor 375V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6680JR06L2	KEMET, 0.68µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TB5100JB16R17	KEMET, 10000pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6100JR17	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PR7100JR02R06L2	KEMET, 1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View

PHE450SD6100JR06L2

Part NumberPHE450SD6100JR06L2
