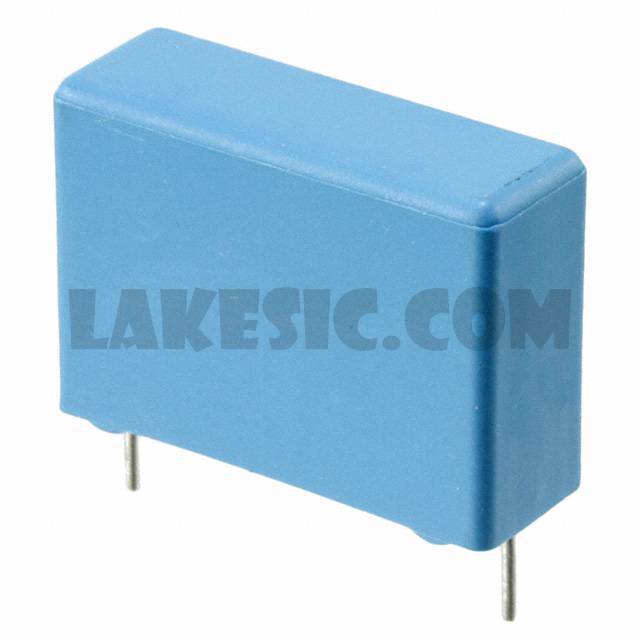

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	308
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.047µF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.354" W (26.00mm x 9.00mm)
Height - Seated (Max)	0.728" (18.50mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450PA5180JR05	KEMET, 0.018µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6470JR06L2	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK4390JR05	KEMET, 3900pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MR7220JR06L2	KEMET, 2.2µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4100JR06	KEMET, 1000pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD5220JR06L2	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD5100JR06L2	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5470JR06L2	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD5330JR06L2	KEMET, 0.033µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450HK3680JR17	KEMET, 680pF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MK3470JR05	KEMET, 470pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450SD5470JR06L2

Part NumberPHE450SD5470JR06L2
